MATRIX A8

Digital Signal Processor

MATRIX-A8 is a DSP for music distribution, paging and zone management system for commercial and fixed installations. It features up to 20 inputs and 20 outputs in a single device powered by a state-of-the -art DSP circuity. Easy to operate and to install thanks to an intuitive GUI, it offers a large number of remote controllers for a wide range of applications.

Features

  • 8 analog IN x 8 analog OUT

  • 4 digital IN x 4 digital OUT

  • 8 Dante IN x 8 Dante OUT

  • Up to 192 IN x 192 OUT

  • DSP functionalities

  • Fix architecture for easy and quick operation

  • Intuitive GUI with PC and Apps software editor

  • Extended remote controller options

Try Out The Web Controller Interface!

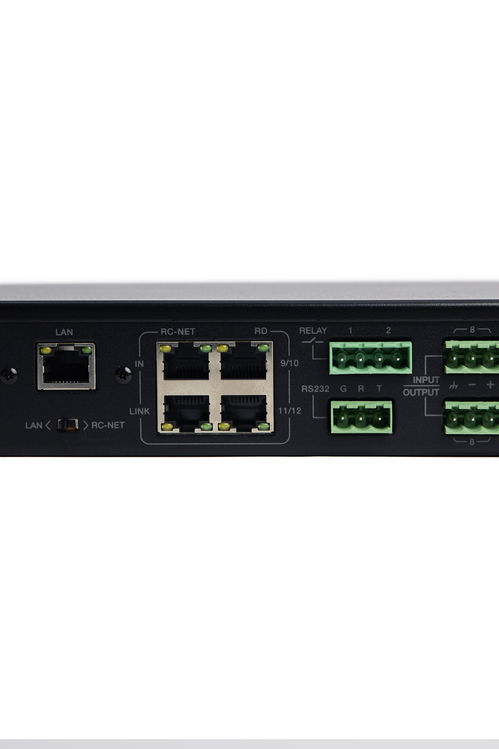

The Matrix A8 Digital Signal Processor features a 20 x 20 digital audio matrix mixer expandable upto 192 in x 192 out by daisy chaining upto 16 units together. Each unit includes 8 analog IN / 8 analog OUT via local ports (Screw terminal connector) 4 digital IN / 4 digital OUT via remote input panels (Cat6 connector) & 8 digital IN / 8 digital OUT via DANTE optional module card.
The processor can be controlled through the proprietary Matrix Controller software which utilizes a familiar hardware-like layout to enable a short programming timeline and rapid hardware implementation. The user-friendly editor makes any setting or modification easy. It reports the control status in real time with clear graphic indications for all functions. MATRIX-A8 uses four types of connections all CAT5e compatible:​
RCNET, based on RS-485 transfer protocol, for MATRIX link (daisy chaining of processors)​RD, based on AES3 transfer protocol for point to point digital audio transport plus RS-485 for panel control. (used to connect to the remote volume connectors or I/O panels) Ethernet Dante for multi-channel digital audio transport.​
Ethernet TCP/IP for LAN control

Features

  • 8 analog IN x 8 analog OUT

  • 4 digital IN x 4 digital OUT

  • 8 Dante IN x 8 Dante OUT

  • Up to 192 IN x 192 OUT

  • DSP functionalities

  • Fix architecture for easy and quick operation

  • Intuitive GUI with PC and Apps software editor

  • Extended remote controller options

Downloads

Specifications

Model

MATRIX-A8

Connectors

Euroblock 4 x 6-pin, 5 mm pitch

MIC Inputs

Active balanced

Input Impedance

6.8KΩ

THD+N

<0.01%,typ 20-20KHz,0dBu

Frequency Response

20-20KHz,+0dB ±1.5 dB

Outputs


     Impedance

240Ω

     Frequency Response

20Hz-20KHz, 0dB +/-1.5dB

     Dynamic Range

-107 dBu Max, A Weighted.

     Crosstalk

-70dB max. A weighted 20Hz-20KHz,​ +20dB, CH to CH.

Indicators


     Signal

-30dBu Green LED, Peak-reading

     Overload

+17dBu Red LED, Peak-reading DSP

     DSP


     Processor

ADSP-series, 450MHz

     Word Length

32 / 64-bit Floating Point

     Power Supply

100-240V/50~60Hz

     Dimensions (W x H x D)

483 x 44 x 256 mm; (19.02" x 1.73" x 10.08")
